Yokogawa PH8EHP Sensor

Yokogawa PH8EHP Sensor

Yokogawa PH sensor

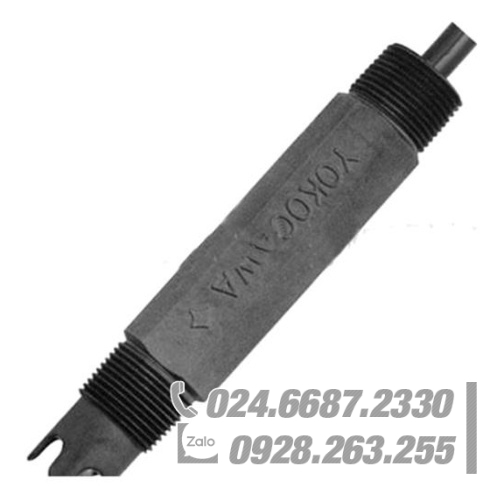

Yokogawa Model PH8EHP pH Sensor for High Purity Water

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: PH8EHP
  • Product Name: Yokogawa PH8EHP Sensor
  • Safety: good
  • Quality: International Standard for Yokogawa PH8EHP Sensor
  • Accuracy: High Accuracy
  • Model: PH8EHP
Mã: 1344-11490 Danh mục:

Yokogawa PH sensor

Yokogawa Model PH8EHP pH Sensor for High Purity Water

PH8EHP electrode sensor
PH8EHP-03, PH8EHP-05, PH8EHP-07, PH8EHP-10, PH8EHP-15, PH8EHP-20

Specification:

1, high purity water pH sensor PH8EHP:

Measuring temperature: 0 ~ 50 ℃
Measuring pressure: atmospheric pressure
Temperature compensation sensor: Pt1000
Weight: about 0.4kg

2, high-purity water application stent PH8HH:

Material: acrylic resin, SUS316, neoprene
Process connection
Entry: Rc1 / 4 or 1 / 4NPT (F)
Export: Rc1 / 2 or 1 / 2NPT (F)
Installation: 50A (2-inch) vertical or horizontal tube or wall mounted (designated mounting bracket)
Weight: about 1.7kg

Characteristic:

1, dedicated stent to provide high purity water measurement solution.
2, combined with pH / ORP analyzer PH450G and PH202, can compensate for the effect of fluid temperature.

Based on Yokogawa’s track record and years of experience, a comprehensive range of products has been produced to provide solutions best suited to individual applications.

The PH8EHP pH sensor and PH8HH holder perform reliable measurement of pH for high purity water used in boilers and semiconductor process applications.

Features

* The dedicated holder provides solutions to problems that arise when measuring high-purity water.
* Combined with the PH450G and PH202 pH/ORP analyzers, it compensates for the effect of fluid temperature.

Specifications

1. pH sensor PH8EHP for High Purity Water

Measuring temperature 0 to 50°C
Measuring pressure Atmospheric pressure
Temperature compensation sensor Pt1000
Weight Approx. 0.4 kg

2. Holder PH8HH for High Purity Water

Material Acrylic resin, 316SS, chloroprene rubber
Process connections Inlet; Rc1/4 or 1/4NPT (F)
Outlet; Rc1/2 or 1/2NPT (F)
Mounting method 50A (2-inch) vertical or horizontal pipe mounting or wall mounting (Specify mounting bracket)
Weight Approx. 1.7 kg

Reference Model :

PH8EHP-03-TN-TT1-N-G*A、PH8EHP-03-TN-TT1-N-H*A、PH8EHP-03-TN-TT1-N-E*A、PH8EHP-03-TN-TT1-N-F*A
PH8EHP-05-TN-TT1-N-G*A、PH8EHP-05-TN-TT1-N-H*A、PH8EHP-05-TN-TT1-N-E*A、PH8EHP-05-TN-TT1-N-F*A
PH8EHP-07-TN-TT1-N-G*A、PH8EHP-07-TN-TT1-N-H*A、PH8EHP-07-TN-TT1-N-E*A、PH8EHP-07-TN-TT1-N-F*A
PH8EHP-10-TN-TT1-N-G*A、PH8EHP-10-TN-TT1-N-H*A、PH8EHP-10-TN-TT1-N-E*A、PH8EHP-10-TN-TT1-N-F*A
PH8EHP-15-TN-TT1-N-G*A、PH8EHP-15-TN-TT1-N-H*A、PH8EHP-15-TN-TT1-N-E*A、PH8EHP-15-TN-TT1-N-F*A
PH8EHP-20-TN-TT1-N-G*A、PH8EHP-20-TN-TT1-N-H*A、PH8EHP-20-TN-TT1-N-E*A、PH8EHP-20-TN-TT1-N-F*A
