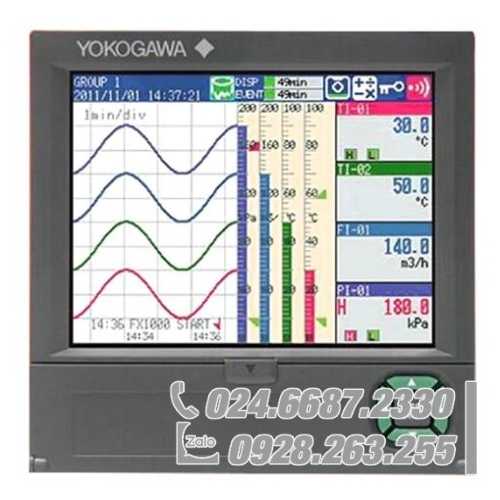

Yokogawa FX1002 Paperless Recorder
GENERAL SPECIFICATIONS
Construction
| Mounting: | Flush panel mounting (on a vertical plane) Mounting may be inclined downward up to 30 degrees from a horizontal plane. |
| Allowable panel thickness: | 2 to 26 mm |
| Front panel: | Water- and dustproof: Complies with IEC529-IP65 (excluding side-by-side mounting) |
Input
| Number of inputs: | FX1002: 2 channels, FX1004: 4 channels, FX1006: 6 channels, FX1008: 8 channels, FX1010: 10 channels, FX1012: 12 channels |
| Measurement intervals: | FX1002, DX1004: 125 ms, 250 ms FX1006, FX1008, FX1010, FX1012: 1 s, 2 s, 5 s |
| Inputs: | DCV (20, 60, 200 mV, 1, 2, 6, 20, 50 V, 1-5 V) TC (R, S, B, K, E, J, T, N, W, L, U, WRe) RTD (Pt100, JPt100) DI (Contact input, TTL level) DCA (with external shunt resistor attached) |
| Measurement/display accuracy: | Standard operating conditions: Temperature: 23 ± 2°C Humidity: 55% ± 10%RH Power supply voltage: 90 to 132 or 180 to 250 VAC Power supply frequency: 50/60 Hz ± 1% Warm-up time: At least 30 minutes. Other ambient conditions such as vibration should not adversely affect the operation. |
| Input | Range | Measurement Accuracy | Digital Display Max. Resolution |
|---|---|---|---|
| DCV | 1-5 V | ±(0.05% of rdg+3 digits) | 1 mV |
| Thermocouple* | K | ±(0.15% of rdg + 0.7°C) –200 to –100°C: ±(0.15% of rdg + 1°C) | 0.1°C |
| RTD | Pt100 | ±(0.15% of rdg+0.3°C) 0.1°C | 0.1°C |
* Does not include the accuracy of reference junction compensation
Alarm Function
| Number of alarm levels: | Up to four for each channel |
| Alarm types: | High limit, low limit, differential high limit, difference low limit, high rate-of-change limit, low rate-of-change limit, alarm delay high limit, and alarm delay low limit |
Event Action Function
| General: | A particular action can be executed by particular event. |
| Number of event actions: | 40 actions can be set |
| urs when the power is turned on. |
Batch Function
| General: | Data display and data management with batch name, text field function and batch comment function are available. |
Power Supply
| Rated power supply: | 100 to 240 VAC (automatic switching) |
| Allowable power supply voltage range: | 90 to 132 or 180 to 264 VAC |
| Rated power supply frequency: | 50/60 Hz (automatic switching) |
| Power consumption: | Max. 45 VA (for 240 VAC power supply) |
NORMAL OPERATING CONDITIONS
| Supply voltage: | 90 to 132, 180 to 250 VAC |
| Rated power supply frequency: | 50 Hz ±2%, 60 Hz ±2% |
| Ambient temperature: | 0 to 50°C |
| Ambient humidity: | 20 to 80% RH (at 5 to 40°C), 10 to 50% (at 40 to 50°C) |
