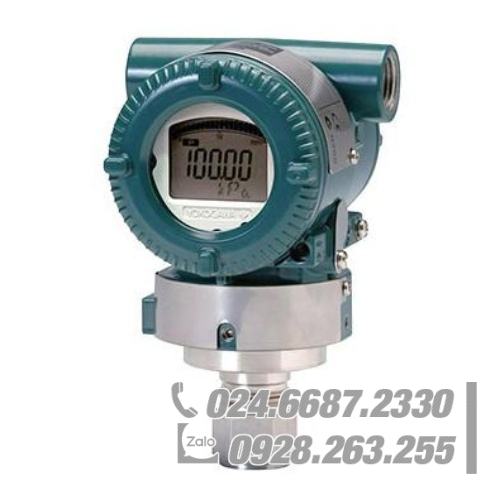

Yokogawa EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the the thoroughbred of the DPharp family of pressure transmitters.



The EJX610A is the high performance In-Line Absolute Pressure Transmitter in the series.

EJX610A faeture include:

  • 0.04% Accuracy (Optional 0.025% Accuracy)
  • 0.2% per 10 years Stability
  • 15,200 psia Maximum Over Pressure
  • 90 ms Response Time
  • TUV SIL 2/3 (IEC61508) Certified
  • Local Parameter Setting (LPS)



The EJX630A is the high performance In-Line Mount Gauge Pressure Transmitter in the series.

EJX630A standard features include:

  • 0.04% Accuracy (Optional 0.025% Accuracy)
  • 0.1% per 10 years Stability
  • 15,200 psi
  • 90 ms Response Time
  • Local Parameter Setting (LPS)
  • TUV SIL 2/3 (IEC61508) Certified
Mã: 1344-11320 Danh mục:

pressure transmitter

Yokogawa EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

The high performance gauge pressure transmitter EJX630A and absolute transmitter EJX610A feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

EJX610A and EJX630A output a 4 to 20 mA DC signal corresponding to the measured pressure. They also feature quick response, remote setup and monitoring via BRAIN or HART communications, diagnostics, and optional status output for pressure high/low alarm.

The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage.
FOUNDATION Fieldbus and PROFIBUS PA protocol
types are also available.

All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the the thoroughbred of the DPharp family of pressure transmitters.
