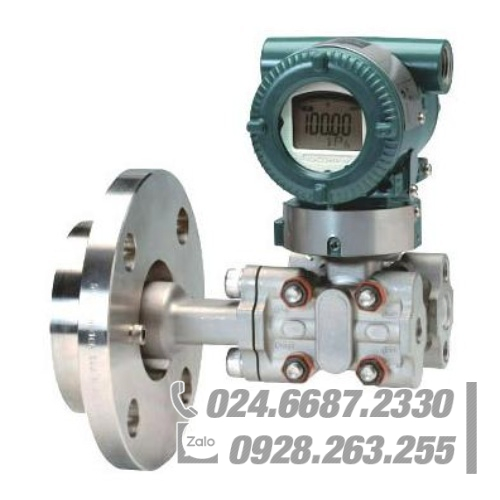

Yokogawa EJX210A Flange Mounted Differential Pressure Transmitter
The high performance flange mounted differential pressure transmitter EJX210A can use to measure levels of densities of solidifying or precipitating liquids. EJX210A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.
Its highly accurate and stable sensor can also measure the static pressure which can show on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, and diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormality as an impulse line blockage.
FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.
The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released is 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.
The EJX210A is the flange-mount Liquid Level Transmitter in the series.
EJX210A features include:
- 0.075% Accuracy
- 120 msec Response Time
- TUV SIL 2 (IEC 61508) Certified
- LPS (Local Parameter Setting)
- Signal Characterizer for the 4 to 20 mA output
