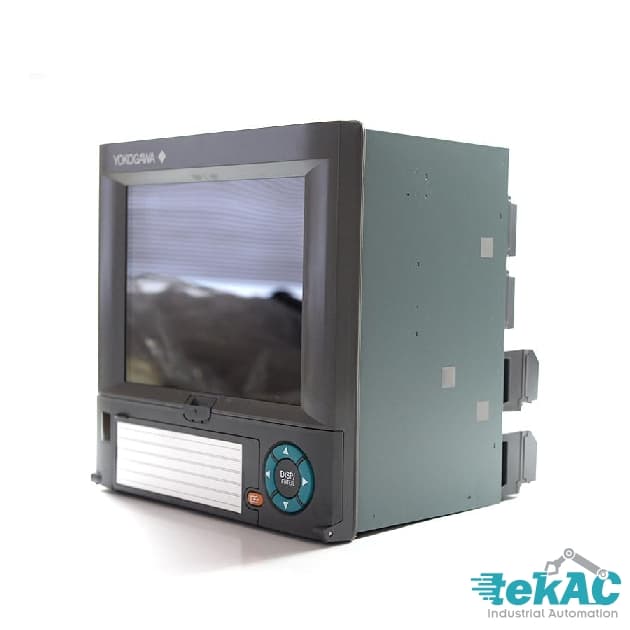

Yokogawa DX1002 Paperless Recorder

Front panel:
Water and dust-proof*
(based on IEC529-IP65 and NEMA
No.250 TYPE4 for indoor locations
(except external icing test))
*Except for side-by-side mounting.

Construction
Mounting: Flush panel mounting (on a vertical plane)
Mounting may be inclined downward up to
30 degrees from a horizontal plane.
Allowable panel thickness:
2 to 26 mm
Material: Case: drawn steel
Bezel: polycarbonate
Display filter: polycarbonate
Case color:
Case: Grayish blue green
(Munsell 2.0B 5.0/1.7 or equivalent)
Bezel: Charcoal grey light
(Munsell 10B 3.6/0.3 or equivalent)

Dimensions:
144 (W) × 144 (H) × 224.1 (D) mm
144 (W) × 144 (H) × 228.5 (D)* mm
*In case of /H2 or /PM1 option is specified.
Weight: approx. 2.9 kg*
*without optional features

Calculation:
Differential computation:
Between any two channels
Available for DCV, TC, RTD and DI ranges.
Linear scaling:
Available for DCV, TC, RTD and DI
ranges.
Scaling limits: -30000 to 30000
Decimal point: user-selectable
Engineering unit: user-definable, up to 6
characters
Over value: Exceeds ± 5% of scaling
limits (on/off selectable)
Square root:
Available for DCV range.
Scaling limits: -30000 to 30000
Decimal point: user-selectable
Engineering unit : user-definable, up to 6
characters
Low level cut off: 0.0 to 5.0% of display
span
Over value: Exceeds ± 5% of scaling
limits (on/off selectable)
1-5VDC scaling:
Available for 1-5VDC range.
Scaling limits: -30000 to 30000
Display span limit: 0.800 to 5.200
Decimal point: user-selectable
Engineering unit : user-definable, up to 6
characters
Low level cut off: Fixed to lower span limit
Over value: Exceeds ± 5% of scaling
limits (on/off selectable)

DX1002 2ch, 125ms (Fast sampling mode: 25ms)
DX1004 4ch, 125ms (Fast sampling mode: 25ms)
DX1006 6ch, 1s (Fast sampling mode: 125ms)
DX1012 12ch, 1s (Fast sampling mode: 125ms)
