Magnetic Flowmeter

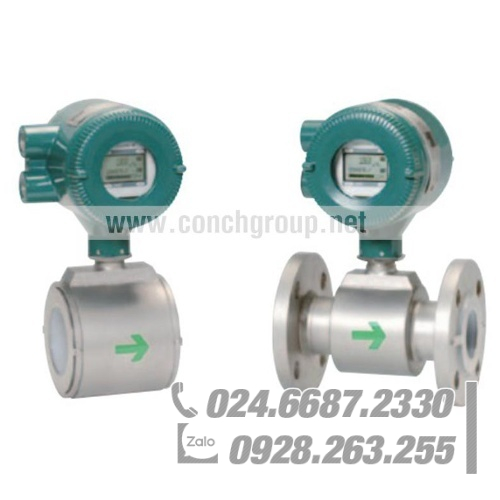

Yokogawa AXR200 Two wire Magnetic Flowmeter Integral Flowmeter

FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)

Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)

AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
