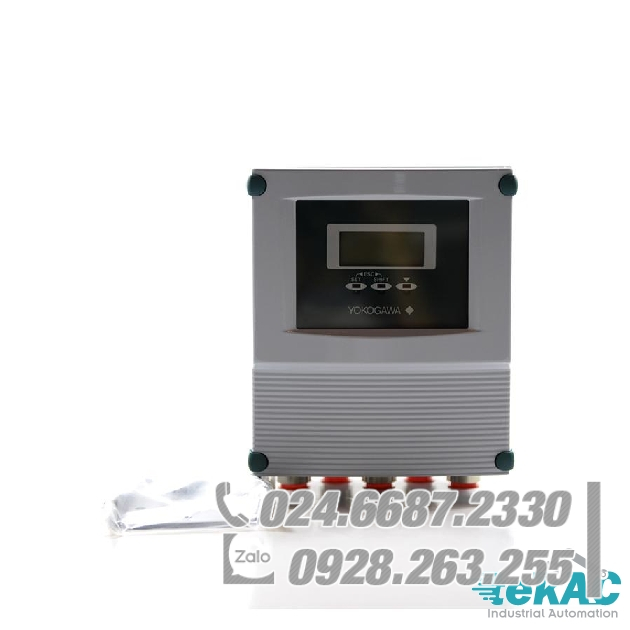

Yokogawa AXFAC Magnetic Flowmeter Remote Converter

Repeatability:
0.1% of Rate (V 1 m/s (3.3 ft/s))
0.05% of Rate 0.5 mm/s (V < 1 m/s (3.3 ft/s))
Maximum Power Consumption:
Combined with AXF Remote Flowtube: 20 W

Power Supply:
Power supply code 1:
• AC specifications
Rated power supply: 100 to 240 V AC, 50/60 Hz
(Operating voltage range: 80 to 264 V AC)
• DC specifications
Rated power supply: 100 to 120 V DC
(Operating voltage range: 90 to 130 V DC)
Power supply code 2:
• AC specifications
Rated power supply: 24 V AC, 50/60 Hz
(Operating voltage range: 20.4 to 28.8 V AC)
• DC specifications
Rated power supply: 24 V DC
(Operating voltage range: 20.4 to 28.8 V DC)

Functions:

The full dot-matrix LCD enables user selections of
displays from one line to three lines for:
• Instantaneous flow rate
• Instantaneous flow rate (%)
• Instantaneous flow rate (bar graph)
• Current output value (mA)
• Totalized forward-direction flow rate
• Totalized reverse-direction flow rate
• Totalized differential flow rate
• Tag No.
• Results of electrode adhesion diagnostics
• Communication type

Accuracy

Fluid temperature; 20 ± 10°C
Ambient temperature; 20 ± 5°C
Length of straight runs;10 D or more on the
upstream side; 5 D or more
on the downstream side
Reference conditions; Similar to BS EN29104
(1993); ISO 9104 (1991)
