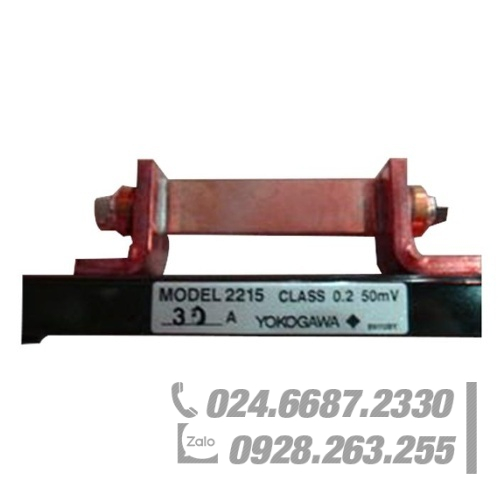

Yokogawa 2215 Series shunts

    Yokogawa 2215 Series shunts

    • Place of Origin: Japan
    • Brand Name: Yokogawa
    • Model Number: 2215
    • Product Name: Yokogawa 2215 Series shunts
    • Safety: good
    • Quality: International Standard for Yokogawa 2215 Series shunts
    • Accuracy: High Accuracy
    • Model: 2215
    Mã: 1344-10040 Danh mục:

    Shunts role and principles:
    DC current measurement shunt is used, produced by the principle of resistance when a voltage across the resistor in accordance with DC current.
    Shunt resistance is actually a very small resistance, when a DC current outdated and pressure drop for DC ammeter display; DC ammeter actually voltmeter, full-scale value 75mV; DC ammeter shunt and is supporting the use of;
    such as:
    100A supporting ammeter shunt resistance 0.00075 Europe;
    That European 100A * 0.00075 = 75mV;
    50A ammeter supporting shunt resistance 0.0015 Euro; 50A * 0.0015 Euro = 75mV.





    Name Model input signal Output signal Accuracy
    Shunts 2215 01 1 A 50 mV ±0.2%
    2215 02 1.5 A
    2215 03 2 A
    2215 04 3 A
    2215 05 5 A
    2215 06 7.5 A
    2215 07 10 A
    2215 08 15 A
    2215 09 20 A
    2215 10 30 A
    2215 11 50 A
    2215 12 75 A
    2215 13 100 A
    2215 14 150 A
    2215 15 200 A
    2215 16 300 A
    2216 01 500 A
    2216 02 750 A
    2216 03 1000 A
    2217 01 1500 A
    2217 02 2000 A
    2217 03 3000 A
    2217 04 5000 A



    * Dedicated DC
