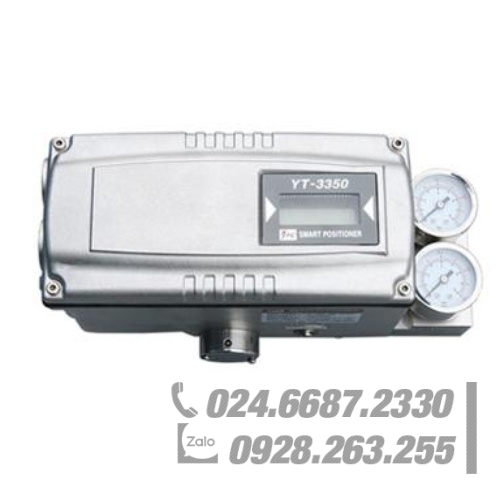

YTC Smart Positioner YT-3350 Series
| Item.Type | YT-3300 | YT-3350 | |
| Input Signal | 4-20mA DC | ||
| Supply Pressure | 0.14-0.7MPa(1.4-7bar) | ||
| Stroke | Linear Type | 10-150mm | |
| Rotary Type | 0-90° | ||
| Impedance | Max.500Ω@20mA DC | ||
| Air Connection | PT(NPT)1/4 | NPT1/4 | |
| Gauge Connection | PT(NPT)1/8 | NPT1/8 | |
| Conduit | PF1/2(G1/2) | ||
| Ambient Temp | Standard Type | (-30°C~85°C)/(-22~185°F) | |
| Low Temp Type | (-40°C~85°C)/(-40~185°F) | ||
| Explosion Temp | (-40°C~60°C T5)/(-40°C~40°C T6) | ||
| LCD Operaling Temp | (-30°C~85°C)/(-22~185°F) | ||
| Linearity | ±0.5% F.S | ||
| Hysteresis | ±0.5% F.S | ||
| Sensitivity | ±0.2% F.S | ||
| Repeatability | ±0.3% F.S | ||
| Air Consumption | Below 2LPM(sup=0.14MPa) | ||
| Flow Capacity | 70LPM(sup=0.14MPa) | ||
| Output Characteristics | Linear,EQ%,Quick Open user set(16 Point) | ||
| Material | Aluminum Diecasting | Stainless Steel316 | |
| Enclosure | IP66 | ||
| Explosion Proof Type | Exia IIC T5/T6 | ||
| Weight | 2kg(4.4Ib) | 5.1kg(11.2Ib) | |
models:
YT3300-LSN: YT-3350LSN; YT3300-LSI; YT-3350LSI; YT3300-LDN; YT-3350LDN; YT3300-LDI; YT-3350LDI; YT3300-RSN; YT-3350RSN; YT- RSI-3300; 3350RSI-YT; YT-3300-RDN; 3350RDN-YT; YT-3300-RDI; 3350RDI-YT; YT-3303LSN; 3303LDN-YT; YT-3303LSI; 3303LDI-YT; YT-3303RSN; YT-3303RSI; YT-3303RDN; YT-3303RDI; YT-3301LSN; YT-3301LSI; YT-3301LDN; YT-3301LDI; YT-3301RSN; YT-3301RSI; YT-3301RDN; YT-3301RDI; YT-3400LSC; YT-3400LDC; YT-3400RSC; 3400RDC-YT; YT-3450LSC; YT-3450LDC; 3450RSC-YT; YT-3450RDC; 2500LSN-YT; YT-2500LDN; 2500LSI-YT; YT-2500LDI; 2500RSN-YT; YT-2500RDN; YT-2500RSI; YT-2500RDI; YT-2550LSN; YT-2550LDN; YT-2550LSI; YT-2550LDI; YT-2550RSN; YT-2550RDN; YT-2550RSI; YT-2550RDI; YT-2501LSN; YT-2501LDN; YT-2501LSI; YT-2501LDI; 2501RSN-YT; YT-2501RDN; YT-2501RSI; 2501RDI-YT; YT-2600LSC; 2600LDC-YT; YT-2600RSC; 2600RDC-YT; YT-2700LSN; 2700LSI-YT; YT-2700RSN; YT-2700RSI;
