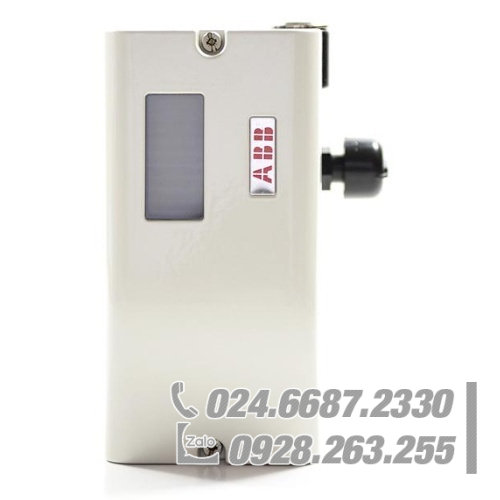

Positioner ABB Digital Electro-Pneumatic Positioners Series TZIDC-120 represents the digital, intelligent positioners for communication via FOUNDATION Fieldbus within the positioners family. Unmatched shock and vibration immunity of 10 g up to 80 Hz distinguishes the TZIDC-120 from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.
Digital communication acc. to PROFIBUS-PA profile, version 3.0, class B
FDT/DTM-technology serves for central configuration, documentation, diagnosis as well as Asset Management
Easiest commissioning and operation on site due to local operation and auto adjustment
Intrinsically safe (IS)
Robust design and flexible in use with linear and rotary actuators
For FOUNDATION Fieldbus
Compact and efficient
— With proven technology and intelligence
Communication-ready for FOUNDATION Fieldbus
— Fieldbus connection acc. to IEC 61158-2
— Power consumption 11.5 mA, 9 … 32 V DC
Easy to commission, user-friendly
— Fully automatic autoadjust
— Setup via integrated operator panel or remote configuration
— Mechanical position indicator
EMV and CE conformity
Robust and environmentally ruggedized
— Shock and vibration influence < 1 %
— Aluminum housing, protection class IP 65
Additional temperature range
— -40 … 85 °C (-40 … 185 °F)
Mounting on pneumatic linear actuators or rotary
actuators
Optional with pressure gauge block and filter regulator
Low operating cost
— Air consumption < 0.03 kg/h
ATEX, FM, CSA, GOST and IECEx approvals
