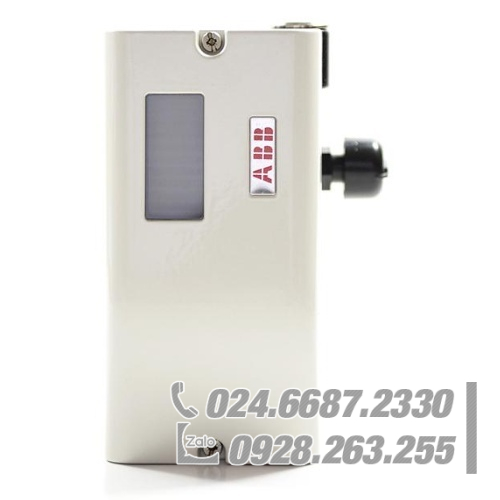

ABB Digital positioner Series Electro-Pneumatic Positioners TZIDC-110

    ABB Digital positioner Series Electro-Pneumatic Positioners TZIDC-110

    positioner ABB Digital Electro-Pneumatic Positioners Series TZIDC-110 represents the digital, intelligent positioners for communication via PROFIBUS PA within the positioners family. Unmatched shock and vibration immunity of 10g up to 80 Hz distinguishes the TZIDC-110 from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.

    Mã: 1341-10040 Danh mục:

    ABB Digital positioner Series Electro-Pneumatic Positioners TZIDC-110

    Standard performance with PROFIBUS PA communication

    Data

    General specifications:

    • PROFIBUS PA communication, version 3.0, class B
    • FDT/DTM-technology serves for central configuration, documentation, diagnosis as well as Asset Management
    • Easiest commissioning and operation on site due to local operation and auto adjustment
    • Worldwide Intrinsic Safety approvals
    • Robust design and flexible in use with linear and rotary actuators

    model

    V18346-1030121001: single acting, fail safe, support Profibus PA TZIDC intelligent locator, connect 1 / 2-14NPT

    V18346-1030221001: single acting, fault lockout (three protection), support Profibus PA TZIDC intelligent locator, connect 1 / 2-14NPT

    V18346-1031121001: single-acting, fail safe, with 4 ~ 20mA feedback two-wire system, ib benzene safety explosion, connect 1 / 2-14NPT

    V18346-1030520001: double acting, fault latching (three-fault protection), support Profibus PA TZIDC intelligent positioner without feedback, connect 1 / 2-14NPT

    V18346-1030420001: Double acting, fail safe, support Profibus PA’s TZIDC smart locator, connect 1 / 2-14NPT

    V18346-1030520001: double acting, fault lockout (three protection), support Profibus PA TZIDC intelligent locator, connect 1 / 2-14NPT
